FILTERMATIC 3B RECLAIM SYSTEM

Filtermatic 3B Reclaim System Features

• Cost-Effective
• Proven Odor Control
• UL Listed Control Panel
• Adaptable to Any Existing Reclaim System
• Save Fresh Water Consumption 70% or More

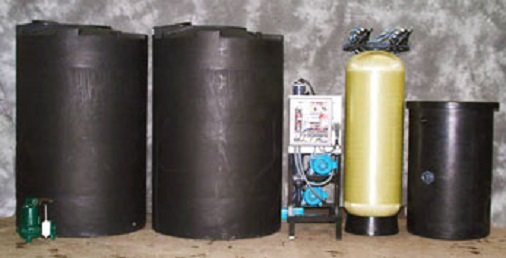

Filtermatic 3B Equipment

Filtermatic 3B Pump Stand

• 1 – 1 HP Filter Pump (Left Pump)
• 1 – 1 HP AquaPrep1 Pump (Right Pump)

Storage Tanks

• 1 – 300 – Gallon Filtered Water Fill Tank (F-Tank)
• 1 – 500 – Gallon Process Tank (P-Tank)
• 1 – UV Lamp
• 1 Trash Pump

Filtermatic 3B Specification

• 2 – 2″ Swing Valves
• 1 – Filter Media Tank
• 1 – Valve Head
• 1 – Backwash Tank
• 2 – 2 In-Line Basket Strainers
• 1 – Pressure Relief Valve
• 1 – Pressure Gauge
• 10’ – ¼” Clear Tube
• 20’ – ¼” Blue Tube
• 2 – Float Switches
• 1 – Filtermatic 3B Full Float Switch (FS1)
• 2 – Low Water Protection Float Switch (FS2)
